DJI Ronin 4D 4-Axis Cinema Camera 6K Combo

DJI Ronin 4D: The Future Is Rolling

Cinematic Imaging | 4-Axis Stabilization | LiDAR Focusing | Wireless Transmission & Control

DJI Ronin 4D integrates our most advanced technologies into a cutting-edge cinematography solution, offering groundbreaking flexibility for solo cinematographers and unlimited possibilities for coordinated shooting. This next-generation cinema camera is designed to be the future of filmmaking.

1. Integrated Design: The Future Is All in One

• Integrated and Modular: Both Realized in One Camera
• Crafted with carbon fiber and aluminum magnesium, integrating imaging, stabilization, focusing, and wireless transmission.
• Reduces setup time and enables quicker shooting.
• Compact convenience with modular accessory possibilities.

Main Body Components:

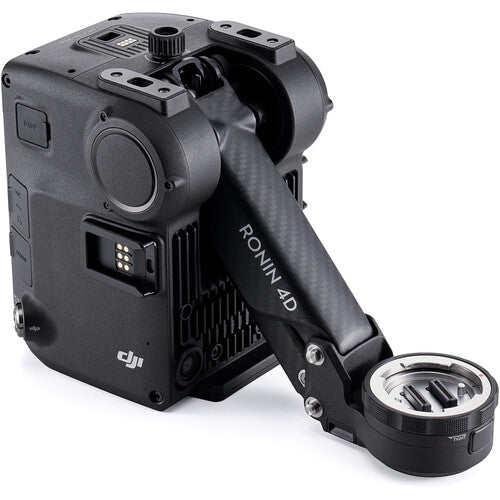

• Zenmuse X9-6K Gimbal Camera
• Top Handle
• High-Bright Main Monitor
• Hand Grips
• 4D Expansion Plate (SDI/XLR/TC)

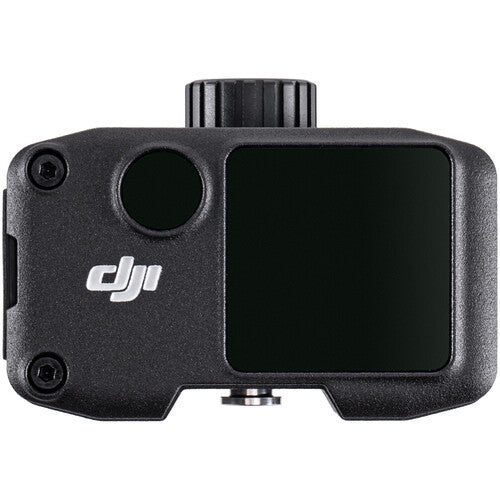

• 4D Video Transmitter
• TB50 Battery Compartment
• TB50 Intelligent Battery
• LiDAR Range Finder
• X9 Focus Motor

2. Cinematic Imaging System: Designed for Pros

• Processing Power: Zenmuse X9 with CineCore 3.0, DJI's latest image processing system.
• Supports internal recording of ProRes 422 HQ, and H.264 video.
• Supports up to 6K/60fps and 4K/120fps video recording.

Full-Frame Sensor Specifications:

• Resolution: DCI 8K (8192×4320)/60fps for detailed imagery.
• High ISO: Dual native ISO for exquisite detail and minimal noise (X9-8K: 800/4000; X9-6K: 800/5000).
• Dynamic Range: 14+ stops for natural transitions in complex lighting.
• Color Science: DJI Cinema Color System (DCCS) and ACES workflow support.
• Built-In 9-Stop ND Filters: Internal motorized system (ND 2 to ND 512, or ND 0.3 to ND 2.7).
• DL Lenses: Lightweight, monocoque carbon fiber lenses (~180 g).
• Interchangeable Mounts: DL, Leica M, and E mounts supported.
• Wireless Control: Wireless lens control and autofocusing with dedicated modules.

3. 4-Axis Stabilization System: Steady in Every Way

• 4-Axis Stabilization: Adds a Z-axis to traditional 3-axis gimbal.
• Combines ToF sensor, dual-visual sensors, IMU, and barometer for advanced stabilization.
• Enables complex camera movements easily.
• Integrated Gimbal Camera: Compact and portable, no tedious manual balancing.
• ActiveTrack Pro: Cinema-standard tracking shots with computer vision and deep learning.

4. LiDAR Focusing System: Unparalleled Accuracy

• LiDAR Waveform: Visualized focus assistance on monitors.
• LiDAR Range Measurement: 43,200 ranging points within 10 meters.
• Autofocus: Maintains focus even with severe motion blur, available on manual lenses.
• Automated Manual Focus (AMF): Combines manual accuracy with autofocus convenience.

5. Wireless Transmission & Control System – Versatile Beyond Imagination

• Video Transmission Performance: DJI O3 Pro, 20,000-foot range.
• 1080p/60fps FHD feed to multiple remote monitors with AES 256-bit encryption.
• Integrated Design: 4D Video Transmitter mounts directly, High-Bright Remote Monitor with 7-inch display.
• Coordinated Shooting: Broadcast and Control modes for multiple receivers.
• Remote control of focus, gimbal, and camera settings.
• Mirror Control Mode: Identical control interface on remote monitor.
• Independent Recording and Playback: microSD card slot on remote monitor.

6. It's All in the Details: Outperforms in Every Way

• Monitoring: High-Bright Main Monitor, exposure/focus assistance, tools overlay, color preview.
• Storage: CFexpress Type-B, USB 3.1 Type-C, DJI PROSSD 1TB.
• Sound Recording: Built-in microphones, 3.5mm jacks, and XLR ports.
• Battery Life: TB50 Intelligent Batteries, up to 2.5 hours of shooting time.
• Ports: Comprehensive main body and remote monitor ports.

Scenarios:

• Solo Operators
• 2-Person Crews
• 3-Person Crews
• Large Crews
• Company Move
