🎥 RED® KOMODO-X® Z Mount Production Pack (V-Lock)

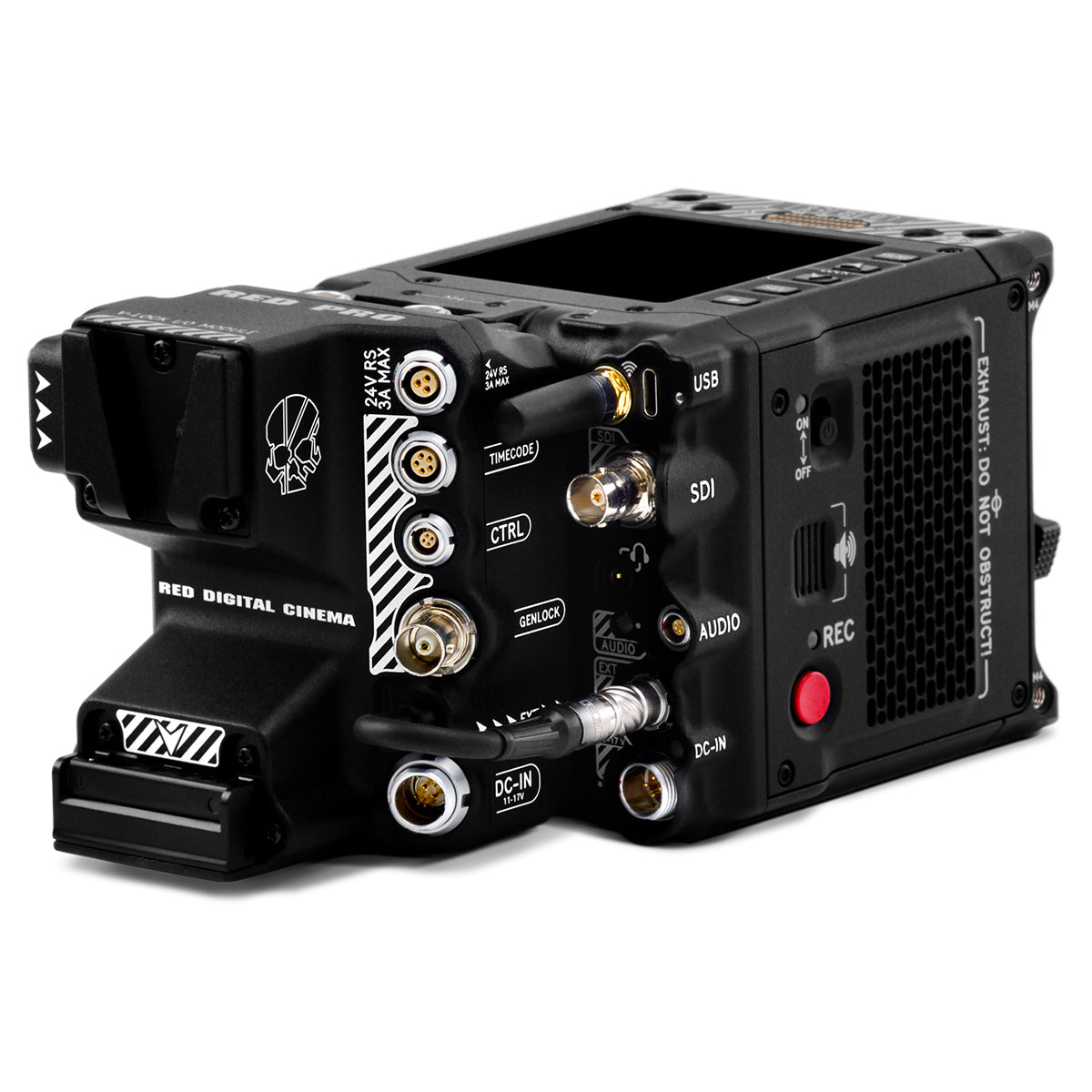

The RED KOMODO-X® Z Mount Production Pack (V-Lock) is a fully loaded cinema package that combines RED’s latest 6K Super35 global shutter camera with a robust kit of production-ready accessories. Optimized for professional filmmaking, this kit includes Micro V-Lock battery support, RED Pro I/O Module, CFexpress media, and RED’s advanced monitoring options.

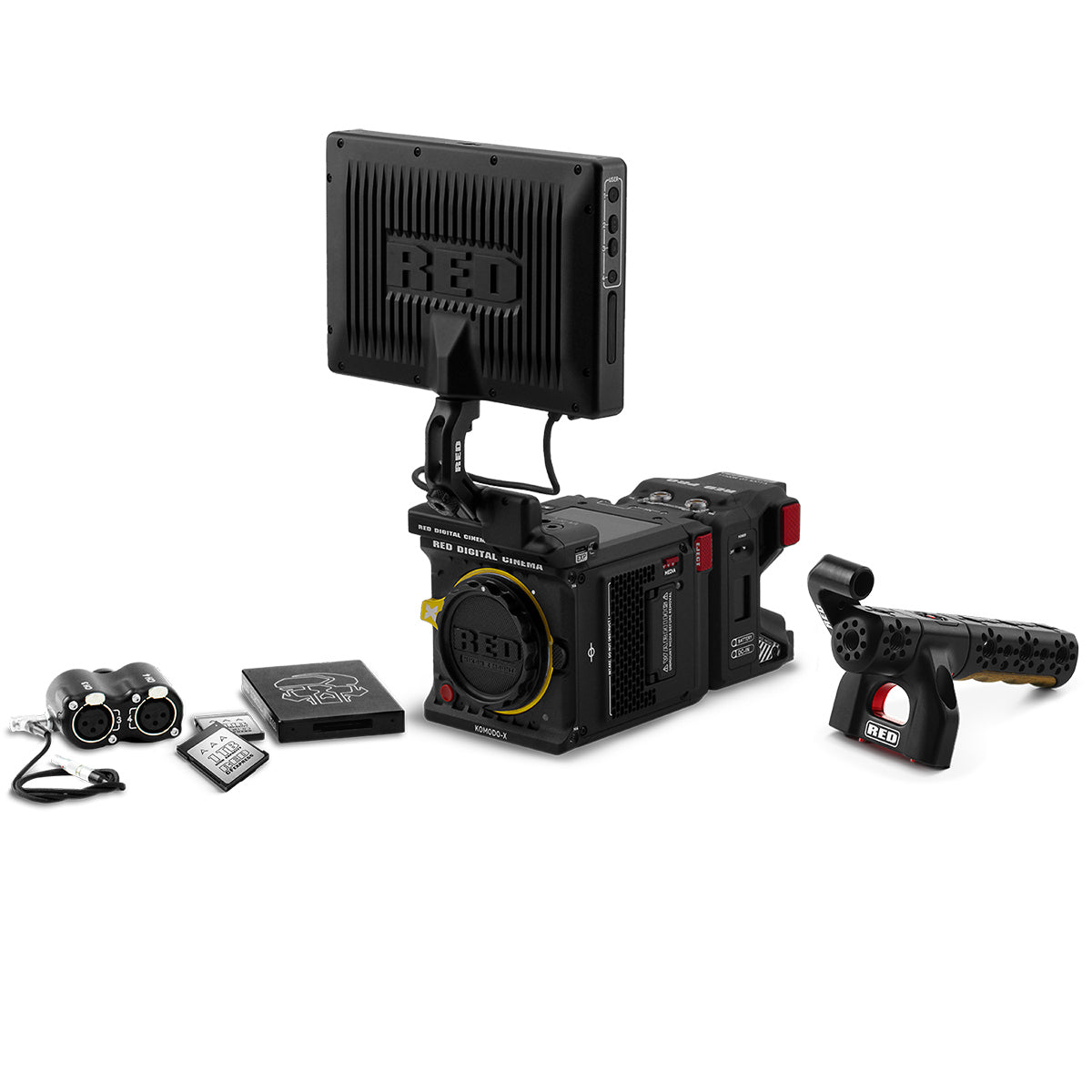

📦 What’s in the Box

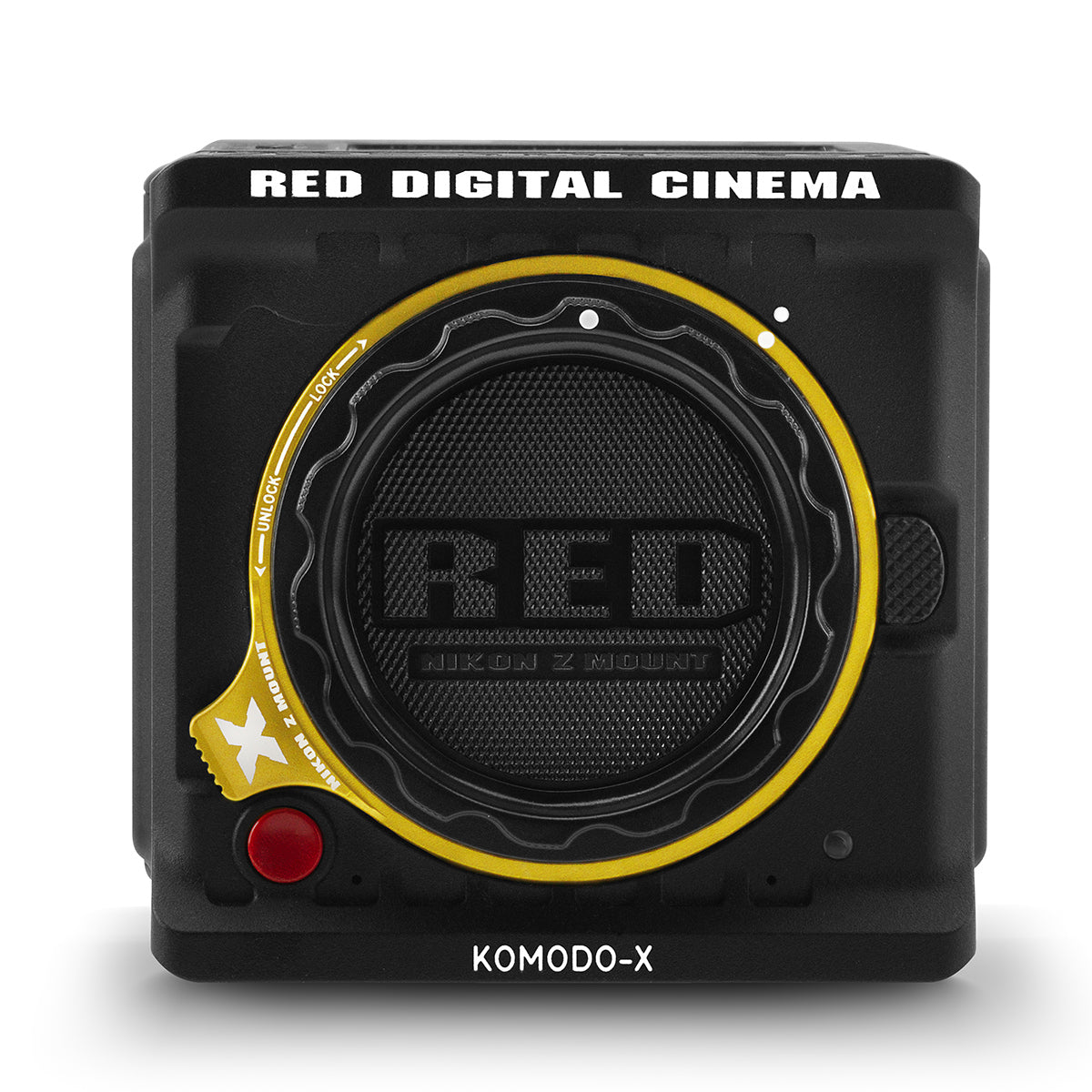

  • RED® KOMODO-X® 6K Digital Cinema Camera (Nikon Z Mount, Black)

  • DSMC3 RED® Touch 7” LCD Monitor (1920 × 1200, 100% DCI-P3)

  • RED PRO CFexpress 1TB Card + CFexpress Card Reader

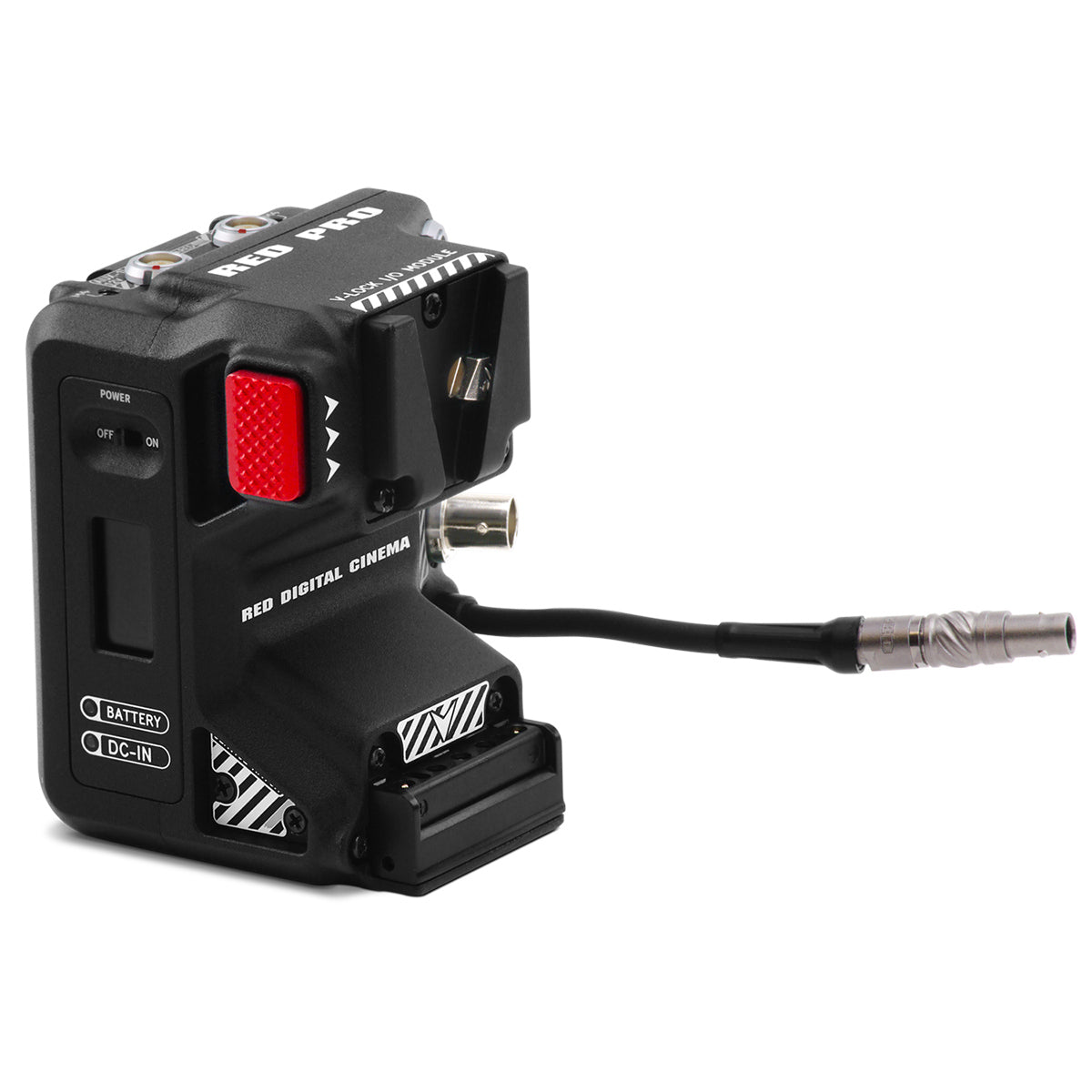

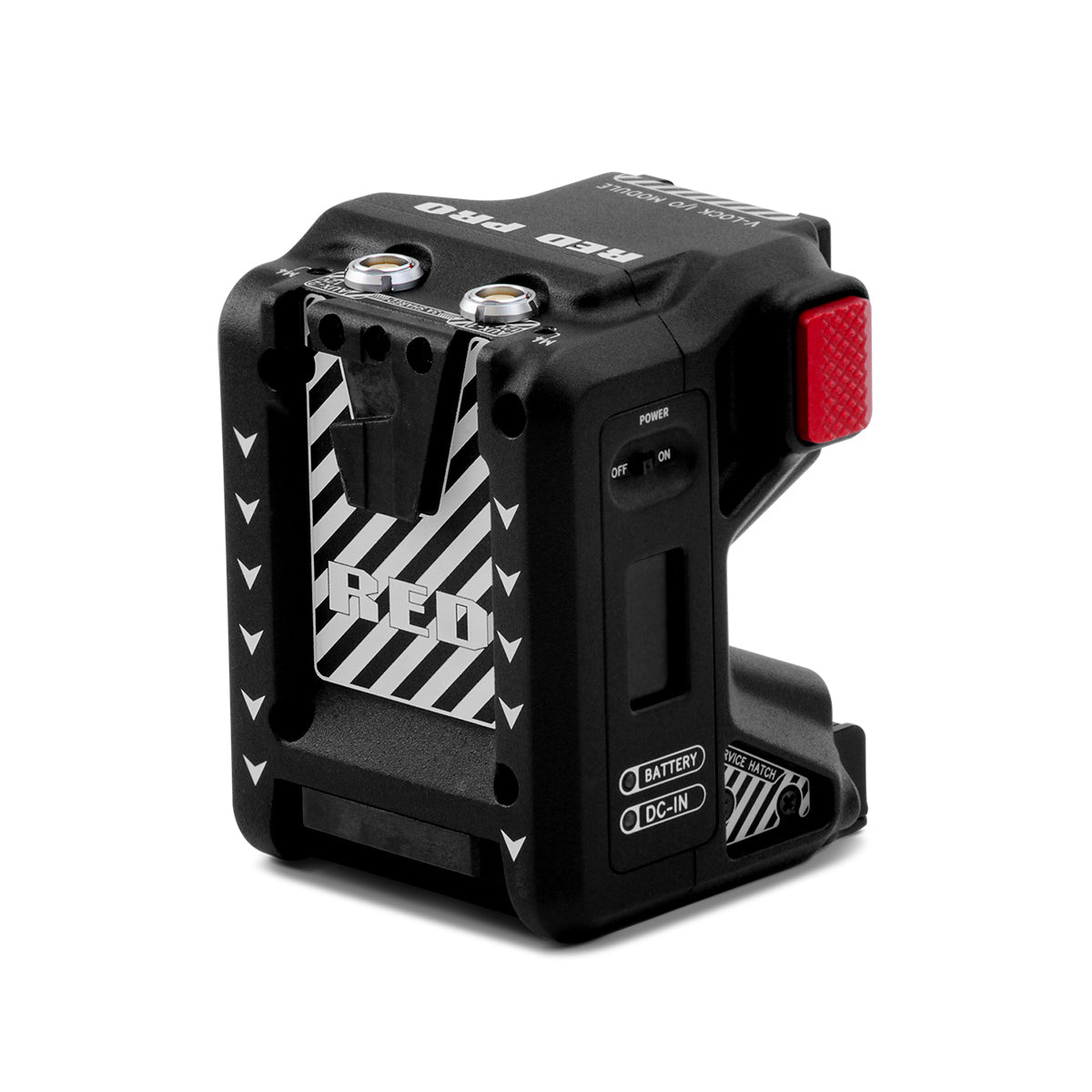

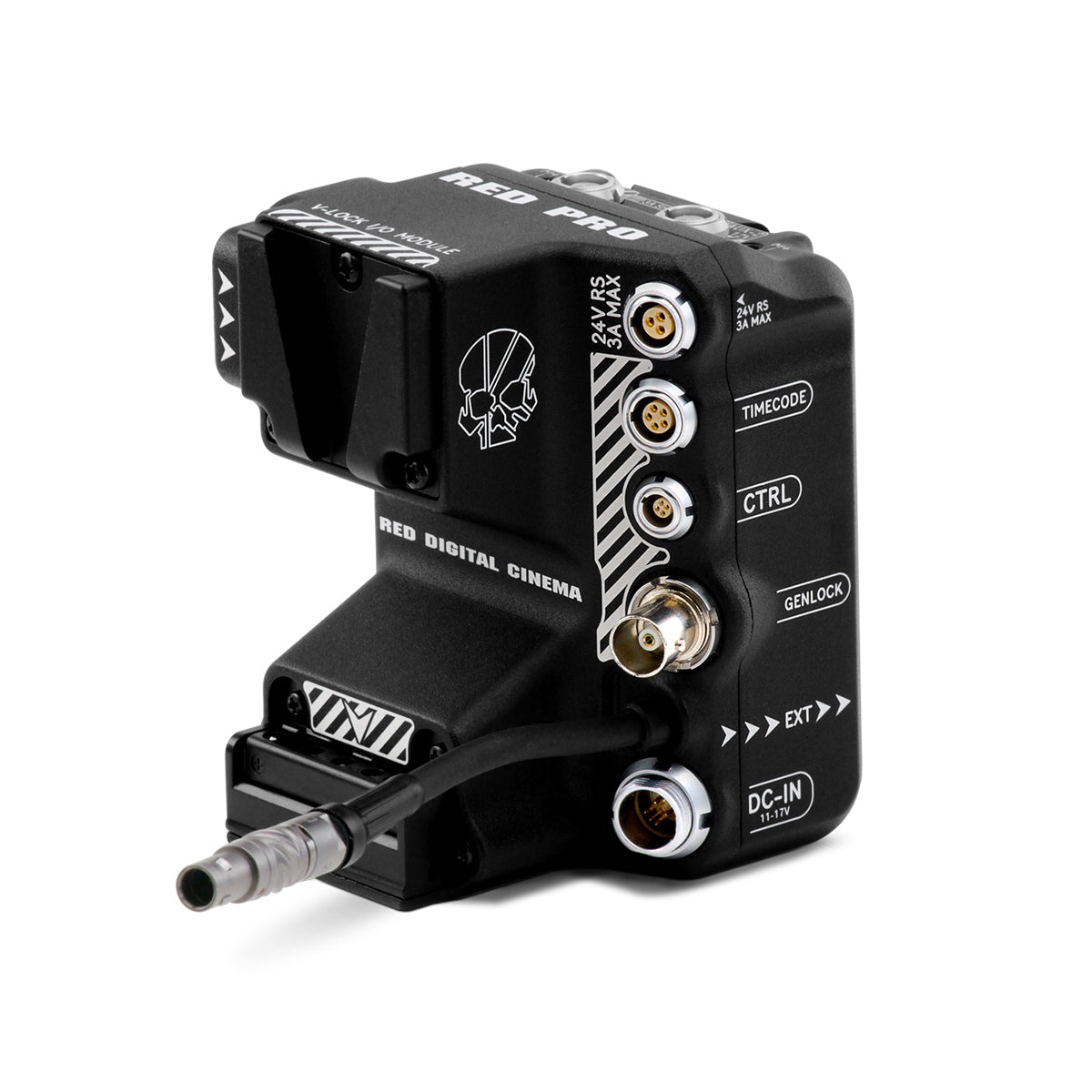

  • RED Pro I/O Module (with Aux Power, Genlock, Timecode, CTRL I/O)

  • RED Compact Top Handle with Run/Stop Control

  • DSMC3 RED 5-Pin to Dual XLR Adapter

  • Essential cabling & mounting hardware

  • Protective Packaging

⭐ Highlights

  • 6K Super35 Global Shutter CMOS with 16.5+ stops DR

  • Native Nikon Z mount with support for adapters (PL, RF, EF, etc.)

  • Records REDCODE RAW (HQ, MQ, LQ, ELQ) & Apple ProRes 4444 XQ, 4444, 422HQ, 422, 422LT

  • High Frame Rates: 6K up to 80fps, 5K up to 96fps, 4K up to 120fps, 2K up to 240fps

  • Built-in 2.9” 1440×1440 LCD touchscreen

  • RED IPP2 color science with LUT/CDL import & control

  • RED Control & RED Control Pro apps (iOS/Android) for remote camera control & preview

  • Integrated Micro V-Lock battery mount for streamlined production workflows

  • Full professional I/O (SDI, Timecode, Genlock, Audio, USB-C, Ethernet)

📊 Technical Specifications

Specification Details
SKU 710-0438
UPC 810016945406
Camera Type RED KOMODO-X® 6K Digital Cinema Camera (Production Pack – V-Lock)
Mount Nikon Z (locking)
Sensor 27.03 × 14.26 mm Super35 CMOS (Global Shutter)
Resolution 6144 × 3240 (19.9MP)
Dynamic Range 16.5+ Stops
Shutter Electronic Global Shutter
Recording Formats REDCODE RAW (HQ, MQ, LQ, ELQ), Apple ProRes 4444XQ/4444/422HQ/422/422LT
Max Frame Rates 6K up to 80fps, 5K up to 96fps, 4K up to 120fps, 2K up to 240fps
Media 1× CFexpress Type B
Outputs 1× 12G-SDI (BNC), USB-C, RED Monitor Interface
Inputs 1× 6-Pin DC-IN (11–17V), 1× 5-Pin Audio Port, 1× 9-Pin EXT (Genlock, LTC, RS232 CTRL)
Audio Dual channel integrated mics + dual channel 5-Pin Audio Port, 24-bit/48kHz
Monitoring 2.9” 1440×1440 LCD (built-in) + DSMC3 7” RED Touch LCD (1920×1200, 100% DCI-P3)
Networking Wi-Fi (2.4/5GHz), Ethernet via USB-C, IP streaming (MJPEG 1080p), RED Connect (license)

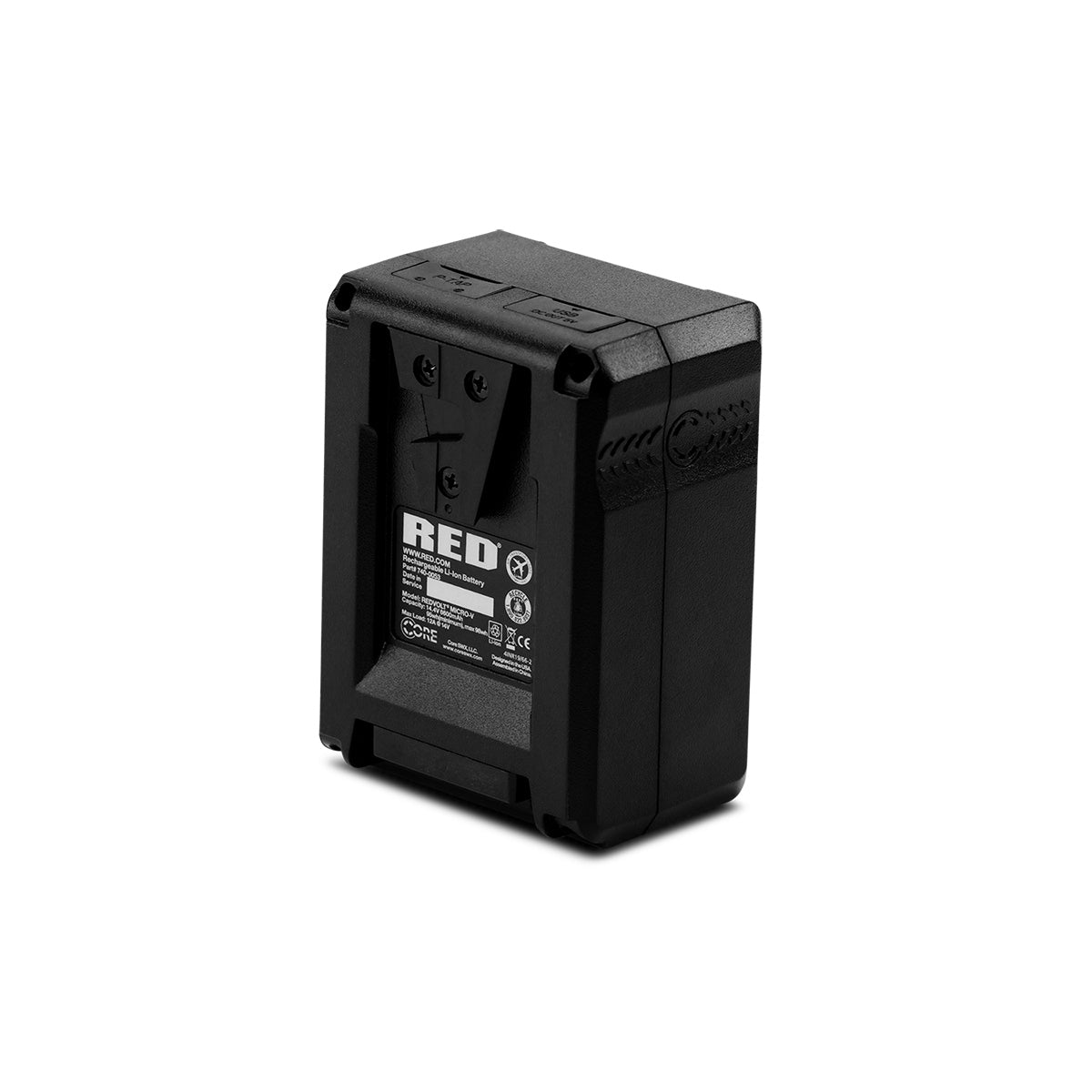

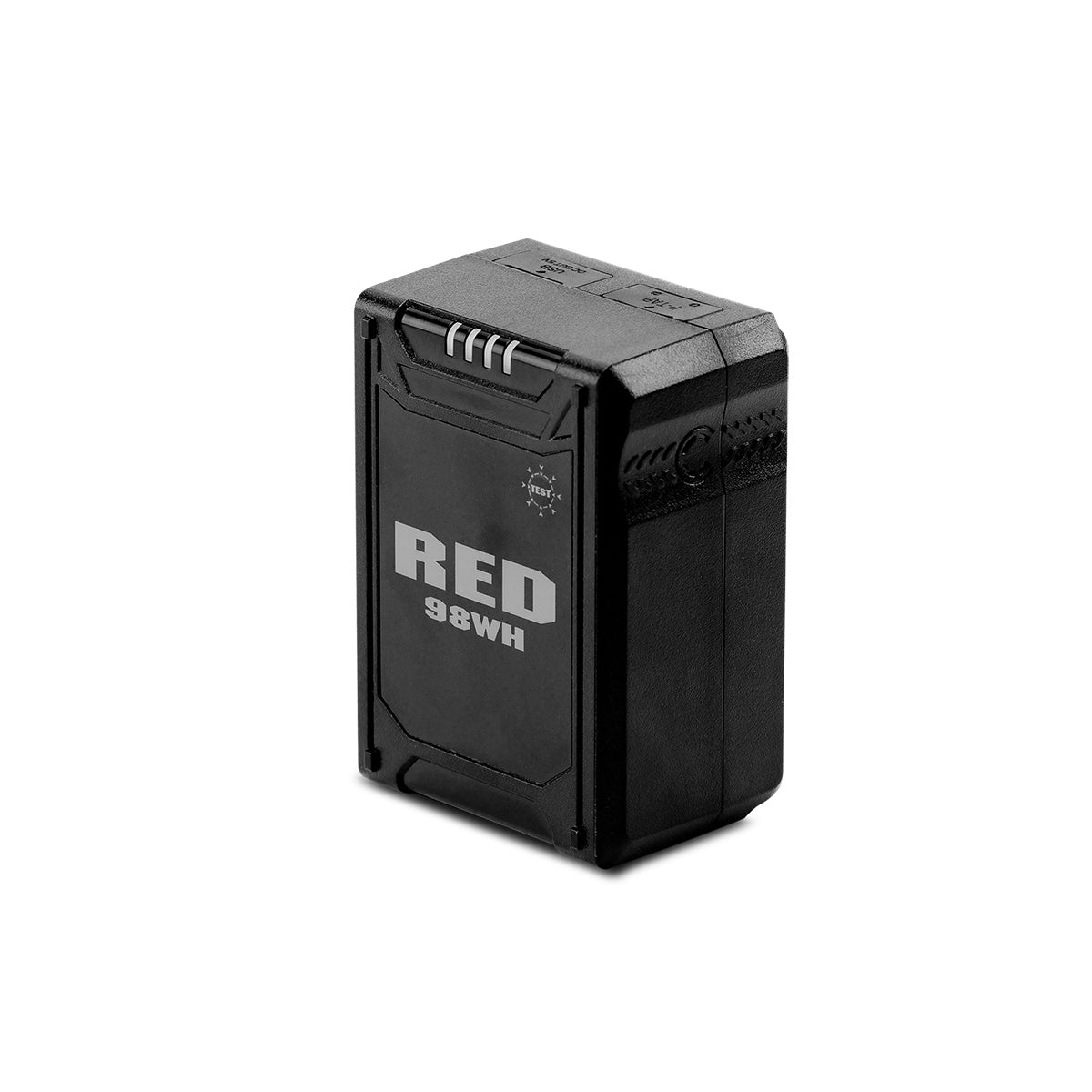

Battery Type Micro V-Lock (non-universal, optional not included)
Body Material Aluminum Alloy
Dimensions (W × H × D) 5.1 × 4 × 3.8" / 129.37 × 101.26 × 95.26 mm
Weight (Body Only) 2.62 lb / 1.18 kg
Monitor (7” LCD) 1920×1200, 100% DCI-P3, 1300 nits, capacitive multi-touch
Media (CFexpress) RED PRO 1TB, up to 800 MB/s
Operating Temp 32 to 104°F (0 to 40°C)
Storage Temp −4 to 122°F (−20 to 50°C)
Humidity 0%–85% non-condensing

🔑 Included Accessories (Pack-Specific)

  • DSMC3 RED Touch 7” LCD Monitor (1920×1200, HDR, P3, 1300 nits)

  • RED PRO CFexpress 1TB Memory Card + CFexpress Card Reader

  • RED Pro I/O Module (Expanded power + I/O)

  • RED Compact Top Handle with Run/Stop Control

  • DSMC3 RED 5-Pin to Dual XLR Adapter (pro audio integration)
