🎥 RED® KOMODO-X™ Production Pack (V-Lock)
The RED® KOMODO-X™ Production Pack (V-Lock) combines the full power of RED’s KOMODO-X™ 6K Digital Cinema Camera with a professional-ready V-Lock battery system, making it an ideal kit for filmmakers needing reliability on long production days. With a Super35 global shutter sensor, uncompromising RAW and ProRes recording formats, and seamless RED ecosystem integration, this pack delivers high-end cinema in a compact, versatile form.

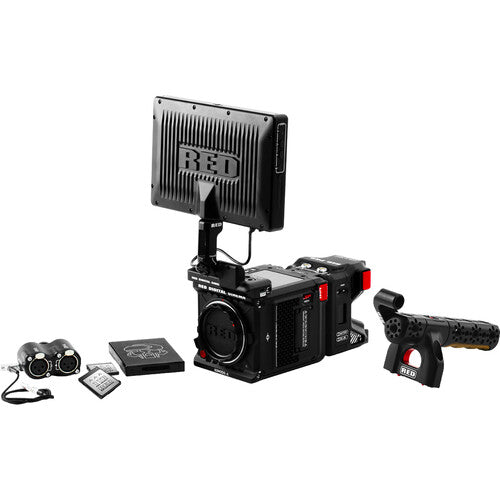

📦 What’s in the Box
-

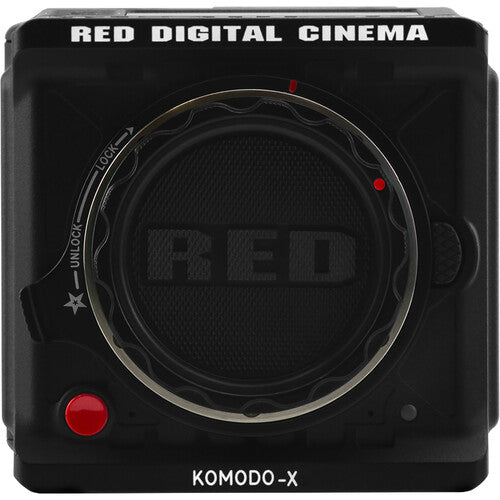

RED® KOMODO-X™ 6K Digital Cinema Camera (V-Lock)
-
2.9” Built-in LCD Touchscreen Monitor
-
V-Lock Battery Plate Assembly
-

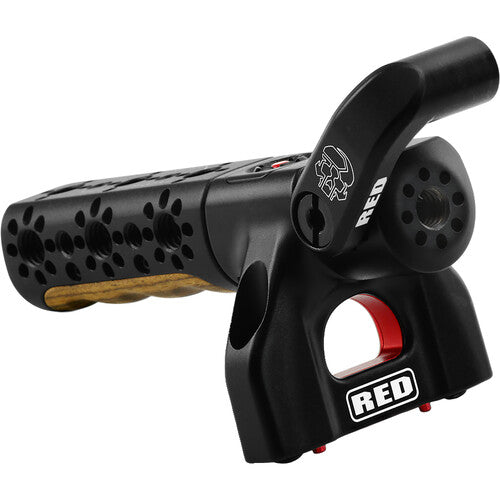

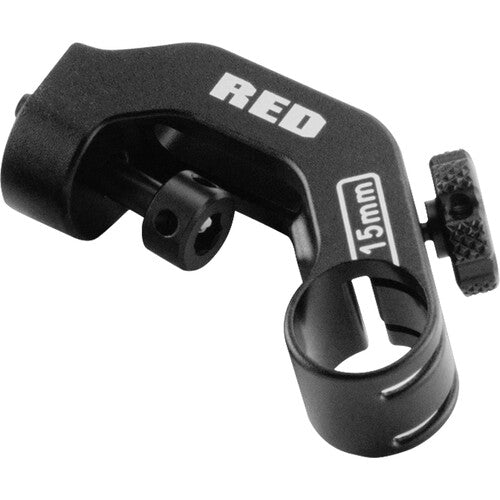

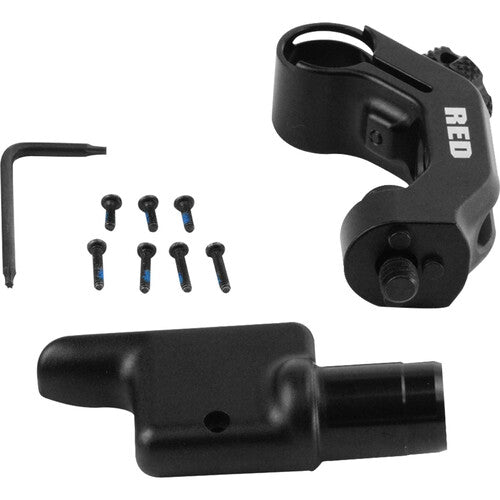

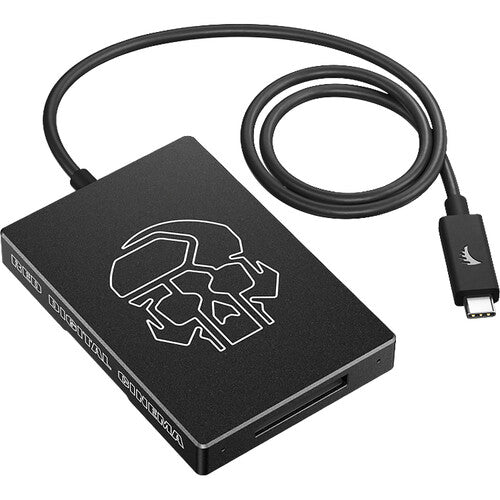

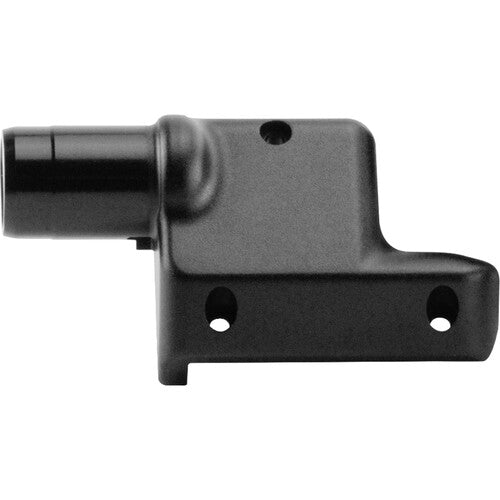

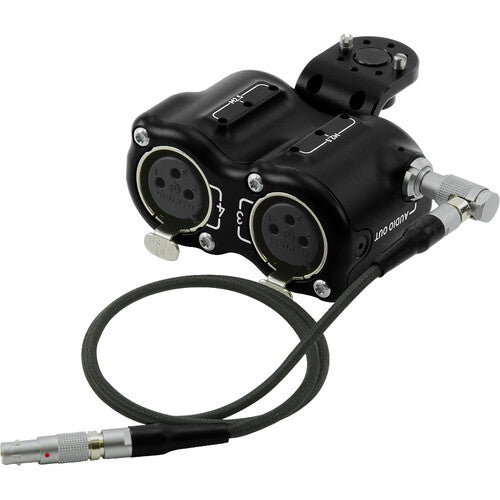

Production-Ready Mounting & Connectivity Accessories
-
Protective Packaging
⭐ Highlights
-
Super35 CMOS Sensor with 19.9MP (6144 × 3240) resolution
-
Electronic Global Shutter with 16.5 stops of dynamic range
-
Records REDCODE RAW & Apple ProRes (422, 4444, 4444XQ)
-
High Frame Rates: 6K up to 80fps / 4K up to 120fps / 2K up to 240fps
-
12G-SDI output with DCI 4K/2K support
-
Full control with RED Control App (iOS & Android)
-
V-Lock battery system for professional workflows
-
Lightweight, rugged aluminum build (2.62 lb / 1.19 kg)
📊 Technical Specifications
| Specification | Details |
|---|---|
| SKU | 710-0417 |
| UPC | 810016414971 |
| Camera Type | RED KOMODO-X™ 6K Digital Cinema Camera |
| Mount | Canon RF (Interchangeable with Conversion Kits) |
| Sensor | 27.03 × 14.26 mm Super35 CMOS |
| Resolution | 6144 × 3240 (19.9MP) |
| Dynamic Range | 16.5 Stops |
| Shutter | Electronic Global Shutter |
| Recording Formats | REDCODE RAW, Apple ProRes 422/422HQ/422LT, ProRes 4444/4444XQ |
| Max Frame Rates | 6K up to 80fps, 5K up to 96fps, 4K up to 120fps, 2K up to 240fps |

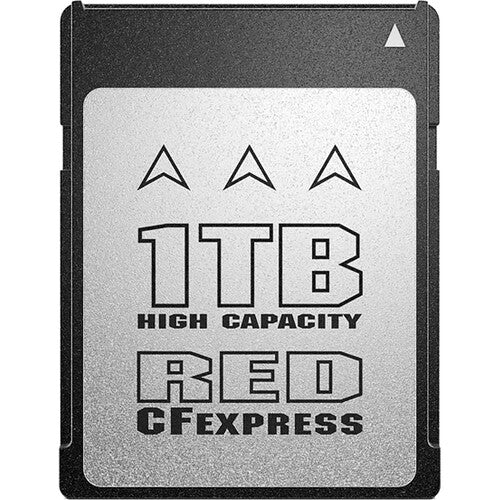

| Media | 1x CFexpress Type B (2.0) |
| Outputs | 1x 12G-SDI (BNC), USB-C (Control/Data/Video), RED Monitor Output |
| Inputs | 1x LEMO 6-Pin (DC In), 1x 5-Pin LEMO Audio Line In, 1x 9-Pin (Genlock/GPI/Timecode) |
| Monitor | 2.9” Fixed LCD (1440 × 1440) |
| App Control | RED Control App (iOS/Android, Wi-Fi/USB-C) |
| Battery Type | V-Lock |
| Body Material | Aluminum |
| Dimensions | 5.09 × 3.99 × 3.75" / 129.37 × 101.26 × 95.26 mm |
| Weight (Body Only) | 2.62 lb / 1.19 kg |
| Package Weight | 7.165 lb |
| Box Dimensions (LxWxH) | 13.2 × 9.8 × 6" |
| Operating Temp | 32 to 104°F / 0 to 40°C |
| Storage Temp | -4 to 122°F / -20 to 50°C (≤85% Humidity) |
The KOMODO-X™ Production Pack (V-Lock) ensures uninterrupted cinema-grade production with maximum flexibility,
