KOMODO-X™ Starter Pack
🎥 RED® KOMODO-X™ Starter Pack
The RED® KOMODO-X™ Starter Pack provides everything you need to begin shooting with RED’s latest 6K Super35 global shutter cinema camera. Compact yet powerful, the KOMODO-X™ combines RED’s industry-leading image science with RAW and ProRes workflows, enabling high-end production in an entry-level kit designed for creators ready to step into the RED ecosystem.

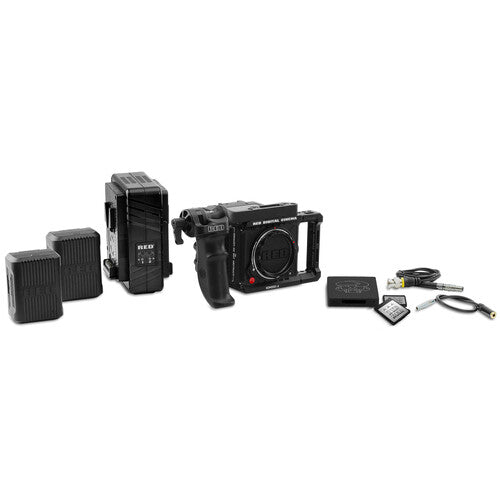

📦 What’s in the Box
-
RED® KOMODO-X™ 6K Digital Cinema Camera (Black, Canon RF Mount)
-
2.9" Fixed LCD Touchscreen Monitor
-
Basic Power & Connectivity Essentials
-
Starter-Level Accessories for On-Set Operation
-
Protective Packaging
⭐ Highlights
-
Super35 CMOS Sensor with 19.9MP (6144 × 3240) resolution
-
Electronic Global Shutter with 16.5 stops dynamic range
-
Records REDCODE RAW & Apple ProRes (422 / 4444 / 4444XQ)
-
High Frame Rates: 6K up to 80fps, 4K up to 120fps, 2K up to 240fps
-
Compact 2.62 lb (1.19 kg) aluminum body
-
Built-in 2.9” LCD touchscreen for monitoring & control
-
Seamless control via RED Control App (iOS & Android)
-
V-Mount battery compatibility
📊 Technical Specifications
| Specification | Details |
|---|---|
| SKU | 710-0386 |
| UPC | 810016414940 |
| Camera Type | RED KOMODO-X™ 6K Digital Cinema Camera |
| Mount | Canon RF (Interchangeable with Conversion Kits) |
| Sensor | 27.03 × 14.26 mm Super35 CMOS |
| Resolution | 6144 × 3240 (19.9MP) |
| Dynamic Range | 16.5 Stops |
| Shutter | Electronic Global Shutter |
| Recording Formats | REDCODE RAW, Apple ProRes 422/422HQ/422LT, ProRes 4444/4444XQ |
| Max Frame Rates | 6K up to 80fps, 5K up to 96fps, 4K up to 120fps, 2K up to 240fps |
| Media | 1× CFexpress Type B (2.0) |
| Outputs | 1× 12G-SDI (BNC), USB-C, RED Monitor Output |
| Inputs | 1× LEMO 6-Pin (DC In), 1× 5-Pin LEMO Audio Line In, 1× 9-Pin (Genlock/GPI/Timecode) |
| Monitor | 2.9” Fixed LCD (1440 × 1440) |
| App Control | RED Control App (iOS/Android, Wi-Fi/USB-C) |
| Battery Type | V-Mount |
| Body Material | Aluminum |
| Dimensions | 5.09 × 3.99 × 3.75" / 129.37 × 101.26 × 95.26 mm |
| Weight (Body Only) | 2.62 lb / 1.19 kg |
| Package Weight | 7.165 lb |
| Box Dimensions (L×W×H) | 13.2 × 9.8 × 6" |
| Operating Temp | 32 to 104°F / 0 to 40°C |
| Storage Temp | −4 to 122°F / −20 to 50°C (≤85% Humidity) |
