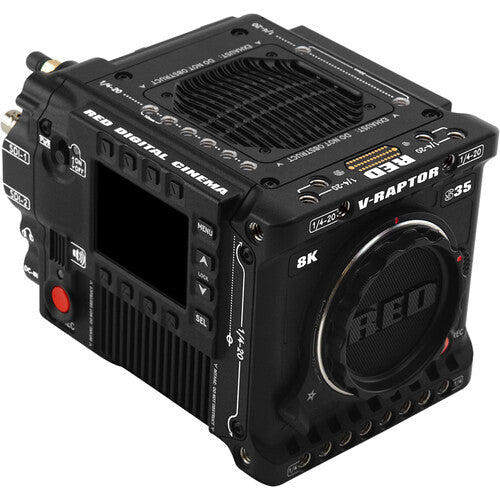

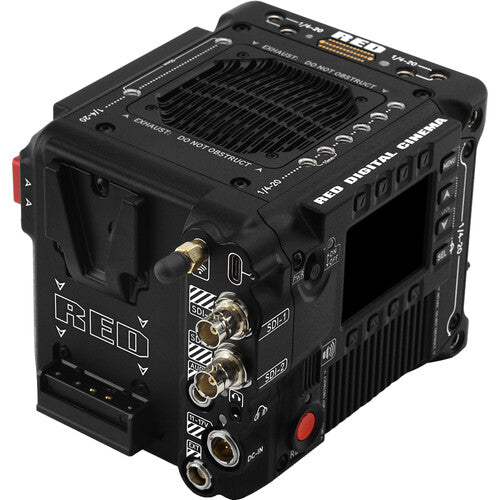

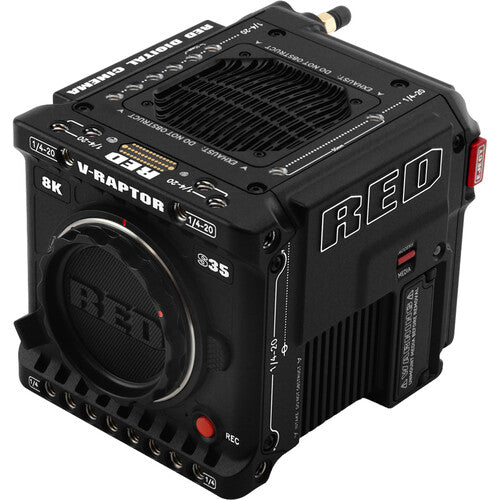

V-RAPTOR® 8K S35 Production Pack (V-Lock)
V-RAPTOR 8K S35 Production Pack (V-Lock) 🎥
A powerhouse Super35 cinema camera delivering advanced imaging in a compact body. With a 35.4MP CMOS sensor, wide dynamic range, and ultra-high frame rate capture, this production pack equips filmmakers for demanding workflows with precision and flexibility.
🔧 Engineered for Performance
Capture 8K at up to 120 fps, with multiple resolution and compression options optimized for both speed and quality. The electronic rolling shutter delivers a dynamic range of 16.5 stops, ensuring every frame retains detail in highlights and shadows.
⚙️ Compact, Durable, Ready
Machined from aluminum with professional mounting points and modular expandability, the production pack balances strength and portability. With integrated wireless control and advanced connectivity, it adapts seamlessly to both studio and field environments.
What’s in the Box
-
V-RAPTOR 8K S35 (V-Lock) Production Pack
⭐ Highlights
-
Super35 CMOS sensor (26.21 x 13.82 mm)
-
Effective resolution: 35.4MP (8192 x 4320)
-
Dynamic range: 16.5 stops
-
Multiple REDCODE RAW recording formats (HQ, MQ, LQ)
-
High-speed capture up to 480 fps (2K)
-
CFexpress Type B media support
-
Dual 12G-SDI outputs
-
Wireless remote control via mobile app
-
Multiple accessory mounting points (1/4"-20, 3/8"-16)
-
Compact and lightweight aluminum body
📊 Technical Specifications
| Specification | Details |
|---|---|
| SKU | 710-0415 |
| UPC | To be confirmed |
| Image Sensor | Super35 CMOS, 26.21 x 13.82 mm |
| Resolution | 35.4 MP (8192 x 4320) |
| Dynamic Range | 16.5 Stops |
| Internal Recording | REDCODE RAW (HQ, MQ, LQ) |
| Max Frame Rates | 8K up to 120 fps, 4K up to 240 fps, 2K up to 480 fps |
| Stabilization | None |
| Media Slot | 1x CFexpress Type B (CFast 2.0) |

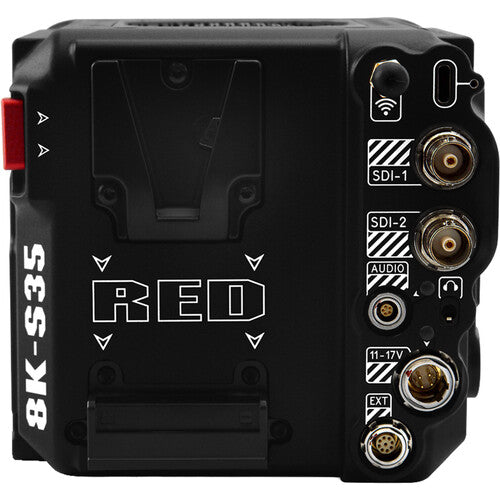

| Video Outputs | 2x BNC (12G-SDI) |
| Audio I/O | 1x 3.5mm Headphone, 1x 5-Pin LEMO Mic/Line |
| Power I/O | 1x LEMO 6-Pin (11–17VDC) |
| Other I/O | 1x USB-C, 1x 9-Pin Control/Data |
| Mobile App Support | Android / iOS (remote control, live feed) |
| Display | 2.4" Non-touch LCD monitor |
| Viewfinder | Via video out only |

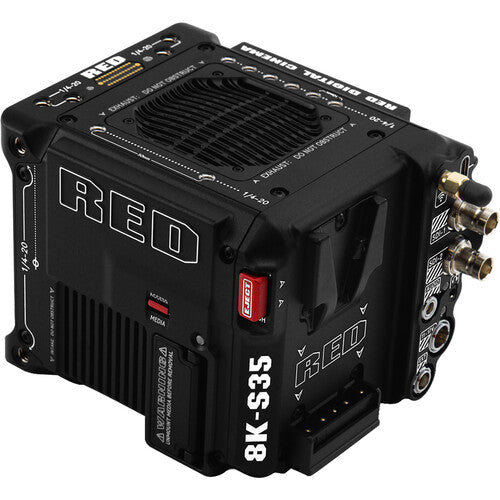

| Battery Type | V-Lock (Micro) |

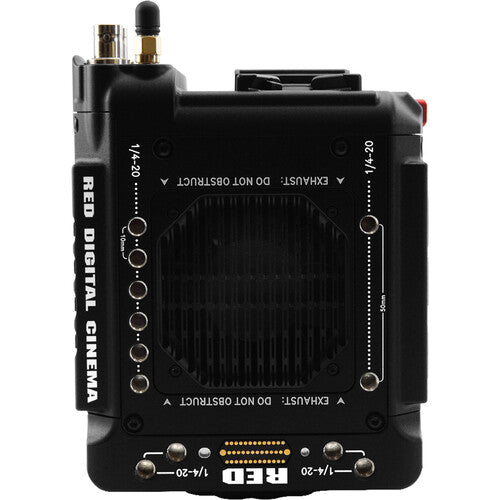

| Accessory Mounts | 28x 1/4"-20, 3/8"-16 bottom mounts |
| Material | Aluminum |
| Operating Conditions | 32 to 104°F (0 to 40°C) |
| Storage Conditions | -4 to 122°F (-20 to 50°C), up to 85% RH |
| Dimensions (W x H x D) | 6.1 x 4.3 x 4.3 in (155.5 x 108 x 108 mm) |
| Weight (Body Only) | 4.03 lb (1.83 kg) |
| Package Weight | 8.5 lb (3.85 kg) |
| Box Dimensions (LxWxH) | 11.8 x 9.5 x 6.3 in (30 x 24.1 x 16 cm) |
