RED Digital Cinema

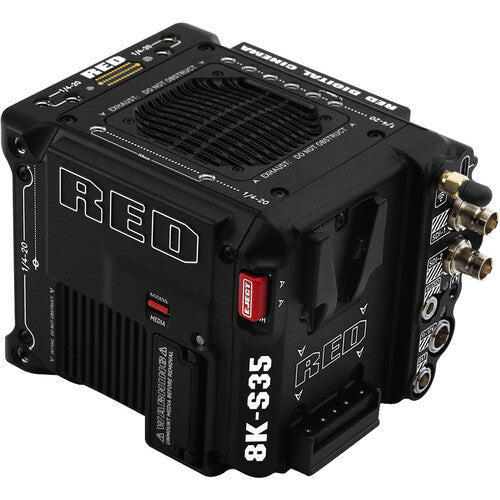

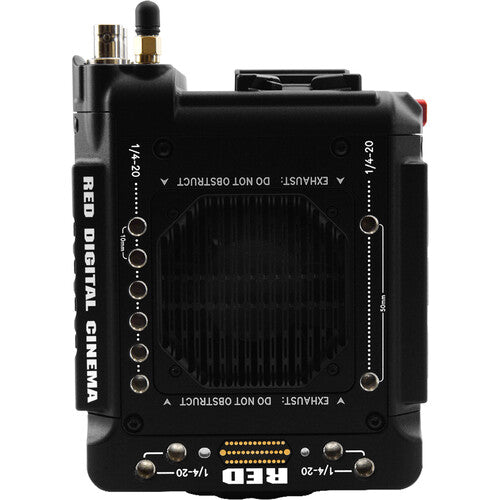

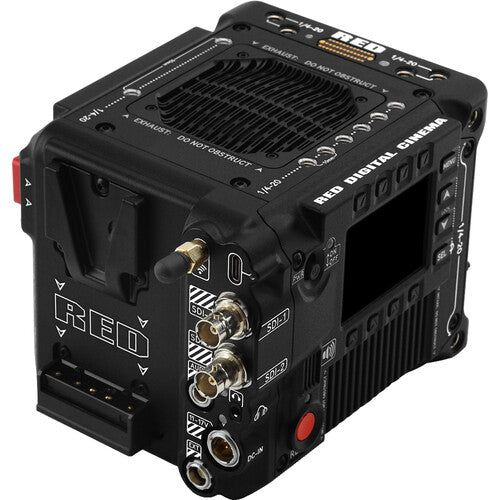

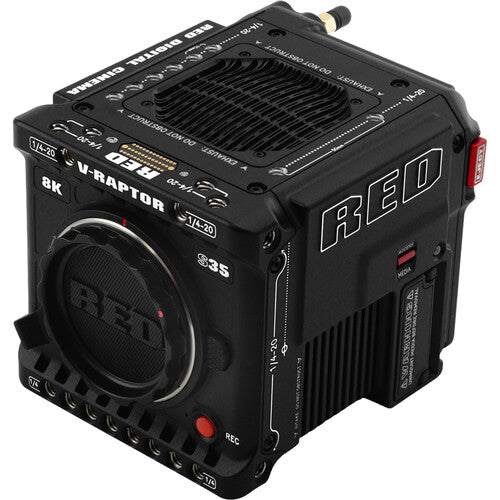

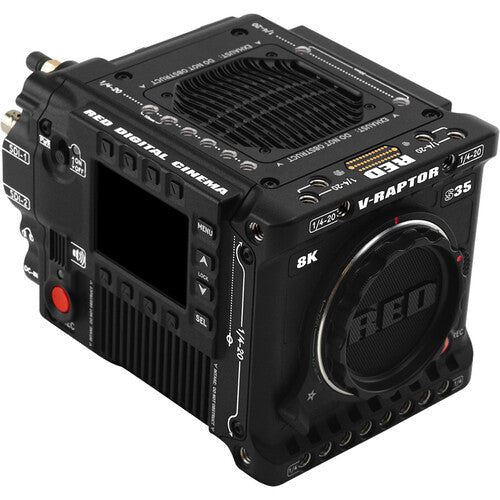

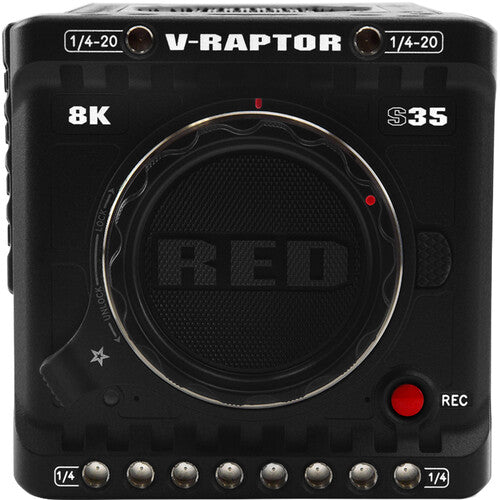

V-RAPTOR® 8K S35 Starter Pack
V-RAPTOR 8K S35 Starter Pack 🎬
A streamlined entry into 8K cinema, this Starter Pack combines cutting-edge imaging performance with a lightweight, modular design. Built around a Super35 CMOS sensor, it delivers ultra-high-resolution video capture, broad dynamic range, and flexible recording formats tailored for modern production needs.
🔧 Built to Capture Without Limits
Engineered for versatility, this system records up to 120 fps in 8K and up to 480 fps in 2K. With advanced autofocus support, professional connectivity, and compact aluminum construction, it adapts easily to any shooting environment.
⚙️ Starter Pack Advantage
This configuration offers an accessible gateway into professional cinema workflows, balancing cost efficiency with uncompromised quality.
What’s in the Box
-
V-RAPTOR 8K S35 Starter Pack
⭐ Highlights
-
Super35 CMOS sensor (26.21 x 13.82 mm)
-
Effective resolution: 35.4 MP (8192 x 4320)
-
16.5 stops of advertised dynamic range
-
Multiple recording formats (REDCODE RAW HQ, MQ, LQ)
-
High-speed capture: 8K up to 120 fps / 2K up to 480 fps
-
Electronic rolling shutter
-
CFexpress Type B recording media slot
-
Dual 12G-SDI outputs
-
Remote operation via mobile app (Android/iOS)
-
Lightweight aluminum construction with professional mounting points
📊 Technical Specifications
| Specification | Details |
|---|---|
| SKU | 710-0414 |
| UPC | To be confirmed |
| Image Sensor | Super35 CMOS, 26.21 x 13.82 mm |
| Resolution | 35.4 MP (8192 x 4320) |
| Dynamic Range | 16.5 Stops |
| Internal Recording | REDCODE RAW (HQ, MQ, LQ) |
| Max Frame Rates | 8K up to 120 fps, 4K up to 240 fps, 2K up to 480 fps |
| Shutter Type | Electronic Rolling Shutter |
| Stabilization | None |
| Media Slot | 1x CFexpress Type B (CFast 2.0) |

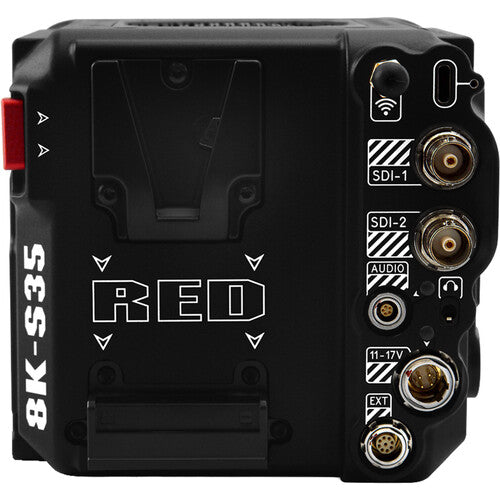

| Video Outputs | 2x BNC (12G-SDI) |
| Audio I/O | 1x 3.5 mm TRS, 1x 5-Pin LEMO (+48V Phantom) |
| Power I/O | 1x LEMO 6-Pin (11–17VDC) |
| Other I/O | 1x USB-C, 1x 9-Pin Control/Data |
| Mobile App Support | Android / iOS (remote control, live feed) |
| Display | 2.4" Non-touch LCD monitor |
| Viewfinder | Via video out only |
| Battery Type | Micro V-Mount |
| Accessory Mounts | 28x 1/4"-20, 3/8"-16 bottom mounts |
| Material | Aluminum |
| Operating Conditions | 32 to 104°F (0 to 40°C) |
| Storage Conditions | -4 to 122°F (-20 to 50°C), up to 85% RH |
| Dimensions (W x H x D) | 6.1 x 4.3 x 4.3 in (155.5 x 108 x 108 mm) |
| Weight (Body Only) | 4.03 lb (1.83 kg) |
| Package Weight | 8.5 lb (3.85 kg) |
| Box Dimensions (LxWxH) | 11.8 x 9.5 x 6.3 in (30 x 24.1 x 16 cm) |
